What are crib walls
Crib walls are a type of retaining wall constructed from interlocking boxes, usually made of timber or concrete, which are filled with soil or other granular materials. They are commonly used to support slopes and prevent soil erosion in various construction projects, such as commercial, domestic, rail and road.
Importance of Understanding Crib Wall Failures
Understanding the reasons behind crib wall failures is crucial for several reasons:
1. Safety: Failed crib walls can pose significant safety hazards, including landslides and structural collapses, which can endanger lives and property.
2. Economic Impact: Repairing or replacing failed crib walls can be costly. Identifying and addressing potential failure points early can save money in the long run.
3. Environmental Concerns: Crib wall failures can lead to soil erosion and environmental degradation, affecting local ecosystems and water quality.
By studying the common causes and consequences of crib wall failures, engineers and construction professionals can design and build more resilient structures, ensuring long-term stability and safety.
Design Flaws: Crib walls fail not by accident, but by design
- Drainage Deficiency: No weep holes, drainage blanket, or geotextile separation; fines-rich backfill.
- Geometry Errors:Vertical alignment (no lean-back), shallow toe embedment, undersized crib depth.
- Load Oversight: Ignored surcharge, hydrostatic pressure, or lateral earth forces.
- Connection Weakness:Poor interlock, lack of fixings, inconsistent timber sizing.
- Site Misjudgment: High-moisture zones, unstable soils, freeze-thaw exposure without mitigation.
Material Quality: Using substandard timber isn’t just a shortcut—it’s a structural liability.
- Untreated or Poorly Treated Timber → Accelerates rot, invites fungal decay, and fails under load.
- High Moisture Content → Causes shrinkage, warping, and joint separation leading to wall distortion.
- Weak Species or Oversized Knots → Reduces load-bearing capacity and increases risk of sudden failure.
- Inaccurate Cuts & Rough Finish → Prevents proper interlock, creating uneven stress and premature movement.
- No Certification or Traceability → Makes quality assurance impossible and voids long-term guarantees.
- The result? Costly repairs, insurance disputes, and compromised safety.
Environmental Factors: Even the best-built crib walls can fail if environmental conditions aren’t accounted for.
- Moisture & Drainage → Poor runoff or blocked drainage traps water, accelerating timber decay and increasing hydrostatic pressure.
- Freeze –Thaw Cycles → Repeated expansion and contraction causes cracking, joint separation, and frost heave especially in poorly compacted backfill.
- UV & Weathering → Prolonged sun exposure degrades untreated timber surfaces, leading to splitting and surface erosion.
- Soil Chemistry → Acidic or clay-rich soils can leach preservatives and promote rot, especially at timber contact points.
- Vegetation & Root Intrusion → Nearby trees and shrubs can disrupt wall alignment and compromise drainage systems.
- Surcharge Loads from Climate Events → Heavy rainfall, snowmelt, or flooding increases lateral pressure and destabilises poorly reinforced walls.
Construction Errors: Crib wall failures often stem from overlooked construction errors
- Improper Timber Placement: Misaligned headers and stretchers reduce interlock and load distribution.
- Inconsistent Spacing: Uneven gaps between timbers cause differential movement and stress points.
- Poor Compaction: Inadequate compaction of backfill leads to settlement and wall bulging.
- Contaminated Fill: Use of fines or clay-rich material traps moisture and promotes rot. •
- No Lean-Back: Walls built vertically instead of with a 6-10° batter compromise stability.
- Missing Drainage Features: Weep holes, filter fabric, or rear drainage layers omitted or blocked.
- Weak Toe Embedment: Shallow foundation or lack of anchorage at base, especially on slopes.
- Unprotected Timber Ends: Exposed cut ends absorb moisture, accelerating decay.
- No Surcharge Planning: Construction near driveways or structures without reinforcement.
- Inadequate Site Prep: Built on unstable or saturated ground without subgrade improvement.

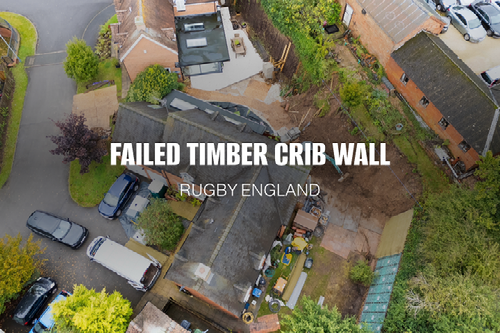

"Crib Wall Remediation: A Detailed Case Study"
- Project Overview: Following structural failure of a timber crib wall in Rugby, we were engaged to deliver a permanent reconstruction. The original wall had failed due to poor drainage, timber decay, and ground movement.Acting as principal contractor, we dismantled the structure, stabilised the slope with soil nails, and installed a long-life retaining system. The result: a compliant, low-maintenance solution with a long year design life.
- Project Name: Monarch Close Failed Crib Wall
- Location: Rugby, Warwickshire.
- Client: Home Owners
- Contractor: Piletec Geotechnical Ltd
- Date: 2024-2025
OBJECTIVES
The primary objective of this project was to remediate the failed crib wall at the specified location, ensuring long-term stability and safety. The remediation involved the following key tasks:
- Assessment and Planning: Conduct a thorough site assessment to evaluate the extent of the failure.
- Develop a detailed remediation plan, including design specifications and material requirements.
- Site Preparation:Clear the site of any debris and unstable materials.
- Set up necessary safety measures and barriers to protect workers and the public.
- Demolition and Removal:Carefully dismantle the failed sections of the crib wall.
- Remove and dispose of any damaged materials in accordance with environmental regulations.
- Foundation and Sub-grade Preparation:Excavate and prepare the foundation and sub-grade to ensure a stable base for the new crib wall.
- Compact the soil and install any necessary drainage systems.
- Construction of STONE PANEL SYSTEM
- Secure existing timber crib with Soil Nails and Rear Panel
- Quality Control and Inspection:Conduct regular inspections to ensure compliance with design specifications and quality standards.
- Address any issues promptly to maintain the integrity of the remediation work.
- Site Restoration:Restore the site to its original condition, including landscaping and any necessary erosion control measures.
- Remove all construction equipment and materials from the site.
DELIVERABLES
- Detailed site assessment report
- Remediation plan and design specifications
- Progress reports and inspection records
- Final project report, including as-built drawings and maintenance recommendations
- Timeline:The project was split into 2 phases and phase one was expected to be completed within 5 weeks, starting mid November 2024 and ending mid December 2024
- .Responsibilities Client: Provide access to the site and any necessary permits.
- Contractor (Piletec): Execute the remediation work in accordance with the scope of works and ensure compliance with safety and quality standards.
- Project Manager: Oversee the project, coordinate between the client and contractor, and ensure timely completion of the work.
STONE PANEL SP Mesh - A Smarter Solution for Retaining Wall Integrity
Our Stone Panel SP Mesh System is a modular rigid mesh system comprising of a stiff back mesh, with a front mesh panel, interspersed with mesh diaphragms. Typically used with soil nails, the aesthetics of SP Mesh Systems offer clients an alternative solution compared with other panel systems or shotcrete facings. The dig and buildability of this system offers significant benefits over other products, which are typically based on reinforcement fabrics / weldmesh.
Independent Use of Back Panels for Crib Wall Support
In cases where a crib wall shows partial deterioration typically localised failure zones or progressive bulging without full structural collapse the strategic deployment of back panels offers a targeted, non-invasive solution. These panels can be installed independently behind the existing crib structure, providing immediate lateral restraint and load redistribution without requiring full wall replacement.
Key Advantages:
- Localized Reinforcement: Back panels can be positioned only where structural integrity is compromised, minimizing disruption and cost.
- No Need for Full Demolition: Retains the original crib wall where it's still performing, avoiding unnecessary excavation or rebuild.
- Improved Load Transfer: The panels intercept soil pressure and redirect it to stable zones, reducing stress on weakened crib elements.
- Compatible with Modular Systems: Especially effective when paired with mini gabion facings or other modular upgrades, allowing phased remediation.
- Insurance-Friendly: Demonstrates proactive risk mitigation, often satisfying insurers by extending service life without full reconstruction.
We are proud to announce the successful completion of our crib wall remediation project. This endeavor was particularly challenging due to the restricted space and limited access to the site. However, our team rose to the occasion, employing innovative techniques and specialized equipment designed for such conditions.
Our mini gabion facing system is a purpose-built solution designed to outperform conventional timber crib walls, especially in subsidence-prone environments. Engineered for durability, drainage, and ease of installation, this system provides a reliable facing option for soil nail and ground stabilisation projects where long-term performance is critical.
