Lubar Residence Landscape Plan, Revised 1/14/25

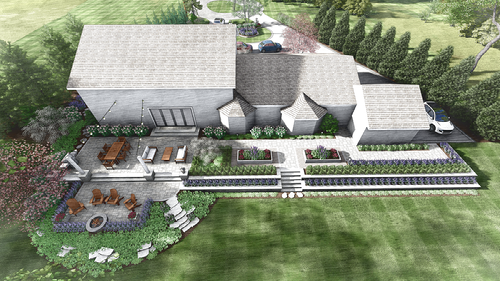

Backyard Design Intent

The proposed retaining walls help create a flat lawn area perfect for play in the backyard. The two patio areas offer a way to separate the gathering space into different zones. The upper patio is designated for grilling, dining, and lounging. Take two steps down to a lower patio, where a wood-burning fire pit is located along the patio edge. The firepit sits under an existing maple, overlooking the bluff. Masonry pillars with lighting create ambiance for evening gatherings.

Front Yard Design Intent

A circle driveway not only enhances the functionality of a property by facilitating smooth circulation for both homeowners and guests, but it also serves as an inviting gateway to the home. The inclusion of two entry masonry pillars adds a touch of elegance and significantly boosts the curb appeal. By using traditional materials like bluestone with a cobble curb, the design pays homage to the classic colonial architecture of the residence, ensuring that the additions are harmonious with the home's existing aesthetic.

Animation

Inspiration Imagery

Proposed Hardscape Elements

Paving: Stoops, Patios and Walks

Mainfield Material: Bluestone Full Color Thermal, Ashlar Pattern A

Border Material: Eden Cobble 5x10x2"-3"

Retaining Wall and Steps

Material: Sawn Lannon Gray Wallstone (8"x6"x Random Lengths)

Material: Eden limestone stone step with natural top and rockfaced riser

Scattered Outcropping and Outcropping Steps

Material: AquaGrantique Outcropping at 7.5" thick

Specialty Features: Masonry Pillars

Wet-Set frost-footed pillars with electric or gas lanterns Material: Brookfield Blend thin veneer stone with Bedford coping 2.5" thick

Specialty Features: Cobble Bed Curb and Edge

Material: Eden Cobble 5x5x10

Specialty Features: Cobble Driveway Border

Material: Eden cobble 5x10x2"-3", three courses wide

Specialty Feature: Wood Burning Firepit

Material: Rustic Gray natural stone firepit with 3" thick coping, includes steel ring

Low Voltage LED Landscape Lighting

Proposed Fixtures

Decorative Gravel

Material: Raven's Stone mix 3/8" and 3/4" for garden area

Edging

Material: Black Steel 3/16" thick

Downspouts and Drainage

Material: 12" x 12" NDD Catchbasin with Black Grate

Culverts & Low Culver Walls

Material: 10" diameter corregated Steel with end flares

Proposed Plantings

Trees

Shrubs

Perennials, Groundcover and Spring Bulbs

Accessories and Furnishings
